New Units » Exmark » LHP23KA565 23 hp Kawasaki® with 56" Deck
Model Quick Search

$11,199.00

2008 eXmark LHP23KA565 23 hp Kawasaki® with 56" Deck
Request a Quote Financing Calculator Request a Brochure Financing Form

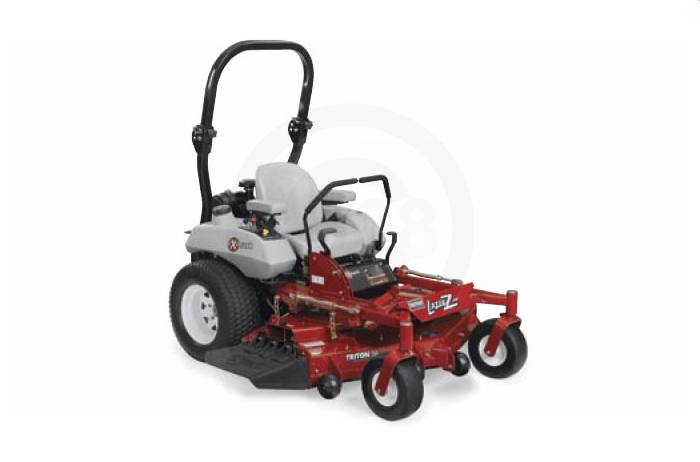

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

THE MANEUVERABILITY AND INDUSTRY-LEADING PERFORMANCE OF THE LAZER Z, IN A COMPACT PACKAGE.

  • Powered by 23 hp Kawasaki® engine.
  • Available with 46" - 56" with Triton® High-Capacity Cutting Deck or 52" 3-Series deck.
  • Quick-lift Deck Assist, which lets the operator use leg power to easily raise and lower the mowing deck.
  • Heavy-duty canister air filtration system that improves engine life, simplifies maintenance and boosts overall productivity.
  • High-back, Elastomeric Vibration Control seat (EVC) with armrests.
  • Blade-Tip speed approximately 18,500 fpm.
  • Large 24 x 9.50-12 MultiTrac® drive tires deliver optimum traction and stability. 23 x 9.50-12, Turf Master® drive tires on 19 hp model.
  • Large diameter (13 x 5.0-6) smooth-tread, semi-pneumatic, front caster tires for increased reliability. Pneumatic front caster tires on 19 hp model.
  • Convenient retractable seatbelt.
OPTIONAL ACCESSORIES
  • Micro-Mulch™ System
  • UltraVac®2 Bagger and QDS Systems
  • Exmark Turf Striper
  • Sun Shade
  • Light Kit
  • Trash Container
  • CustomRide™ Seat Suspension
  • Operator Controlled Discharge
  • LazerLocker
SPECIFICATIONS
  • Engine: 23 hp Kawasaki® V-Twin, governed to 3600 rpm.
  • Drive System: Two Hydro-Gear 10cc/rev variable-displacement pumps powering two high-torque Parker/Ross wheel motors with 1.25" (3.2 cm) diameter tapered shafts.
  • Speed: Infinitely variable speed selection from 0-9.5 mph (15.3 kmph) forward, 0-5.5 mph (8.9 kmph) reverse.
  • PTO Engagement: MagStop Electromagnetic 200 ft-lbs clutch. 27 hp model with spot brake. 2-year warranty.
  • Fuel Capacity: 11.5 gallon (42.4-L) twin fuel tanks.
  • Blades: 3-19.50 in. (49.5 cm)
  • Weight: 1190 lbs.
  • Width: 68.9 in. (175.0 cm)
  • Length: 82.0 in. (208.3 cm)
  • Height: 69.9 in (177.5 cm)
  • Deck Style: Triton® High-Capacity Cutting Deck side-discharge standard with option to bag or mulch.
  • Widths Available: 46," 50" and 56" 10-gauge top that is formed and continuously seam welded, with 10-gauge top reinforcement plate, 7-gauge side skirt and 7-gauge reinforcement rings at spindle assembly. 6" deep, 4-point suspension, full-floating deck with 3 (46" and 50") or 6 (56") adjustable cone-shaped, anti-scalp rollers.
  • Cutting Heights: 1.0" (2.5 cm) to 4.5" (11.4 cm) in 0.25" (0.64 cm) increments and adjustable from operator’s seat.
  • Blade-Tip Speed: Approximately 18,500 fpm.
  • Tractor Frame: Welded, heavy-duty 7-gauge steel.
  • Steering & Motion Control: Hydraulically dampened twin levers adjust fore and aft. Also adjustable to two height positions.
  • Front Caster Tires: 13 x 5.0-6, smooth tread, semi-pneumatic tires.
  • Drive Tires: 24 x 9.50-12, 4-ply Multi-Trac.
  • Turning Radius: True zero-turn.
  • Parking Brake: Lever-actuated drum and band integrated with transmission-neutral interlock.
  • Seat: High-back, Elastomeric Vibration Control (EVC) seat, which has no springs. Seat adjusts fore and aft and features padded armrests.
  • Engines Available: 19 hp Kawasaki® V-Twin; 27 hp Kohler® Command SP V-Twin w/electric start, governed to 3600 rpm.

Specifications

Engine
Engine Manufacturer Kawasaki®
Horse Power 23 hp
Engine Type V-Twin
General
Transmission Dual Hydro-Gear®
Wheel Size Drive: 24 x 9.50 - 12, Caster: 13 x 5.0 - 6
Fuel Capacity 11.5 gal. (42.4 l)
Deck
Deck Size 56 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit

Compare Models

 Print








Year 2008
Manufacturer Exmark
Model LHP23KA565 23 hp Kawasaki® with 56" Deck
Style Riding
Deck
Deck Size 56 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit
Engine
Engine Manufacturer Kawasaki®
Horse Power 23 hp
Engine Type V-Twin
Displacement
General
Transmission Dual Hydro-Gear®
Wheel Size Drive: 24 x 9.50 - 12, Caster: 13 x 5.0 - 6
Fuel Capacity 11.5 gal. (42.4 l)
